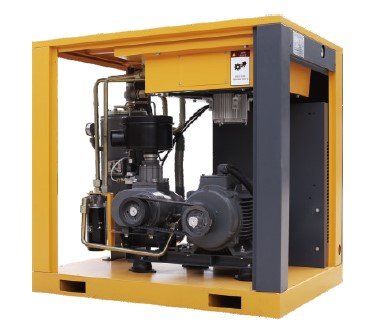

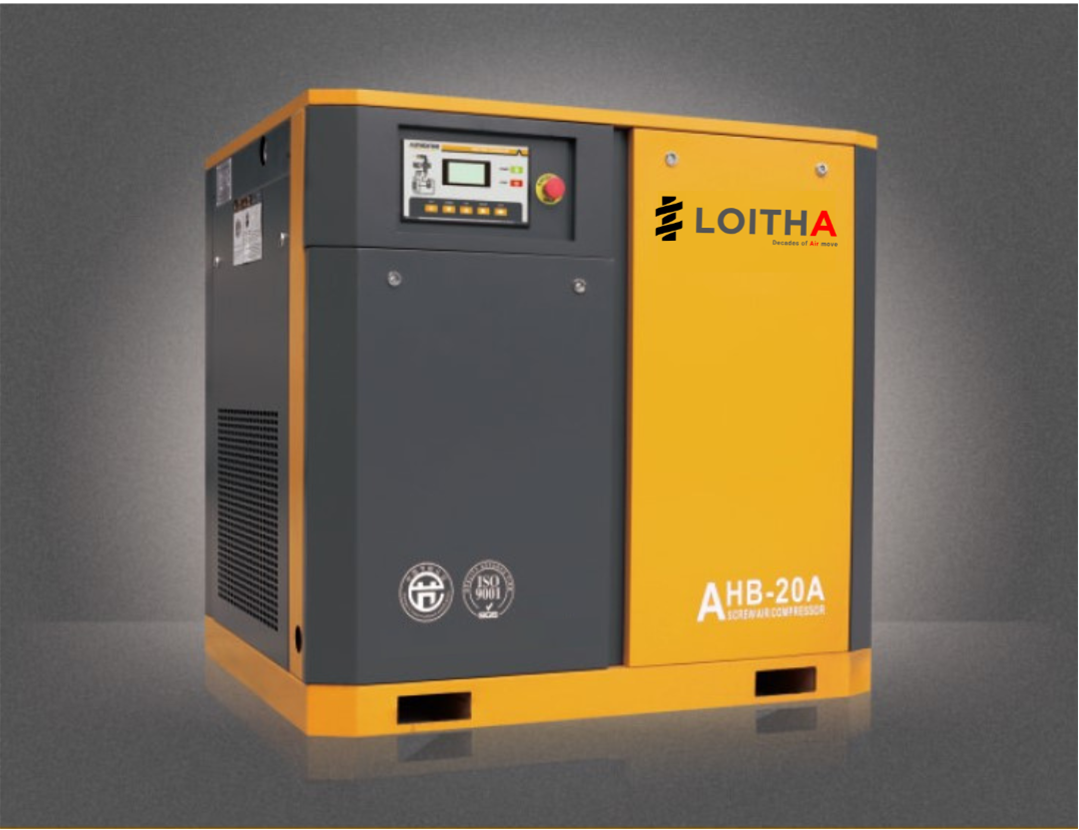

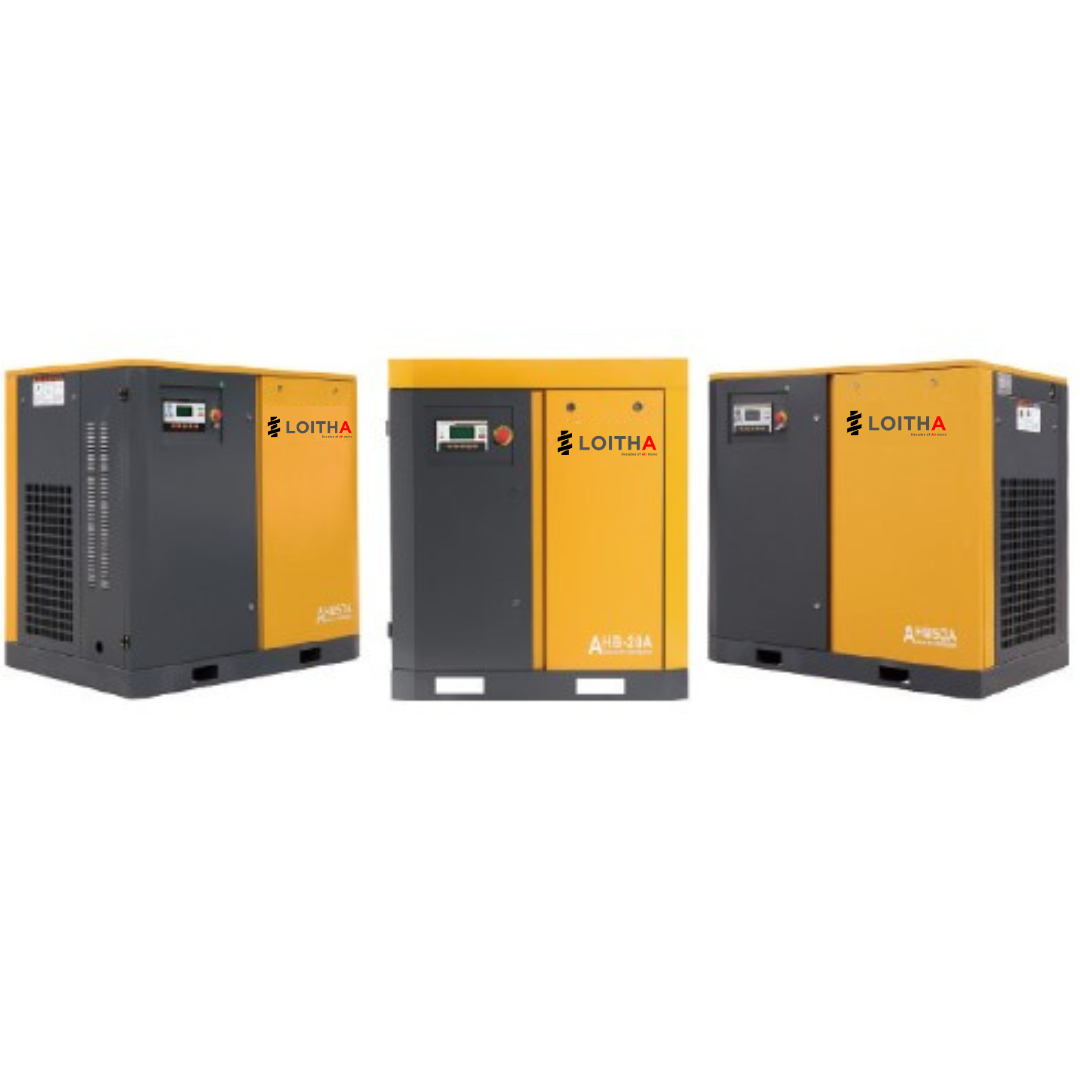

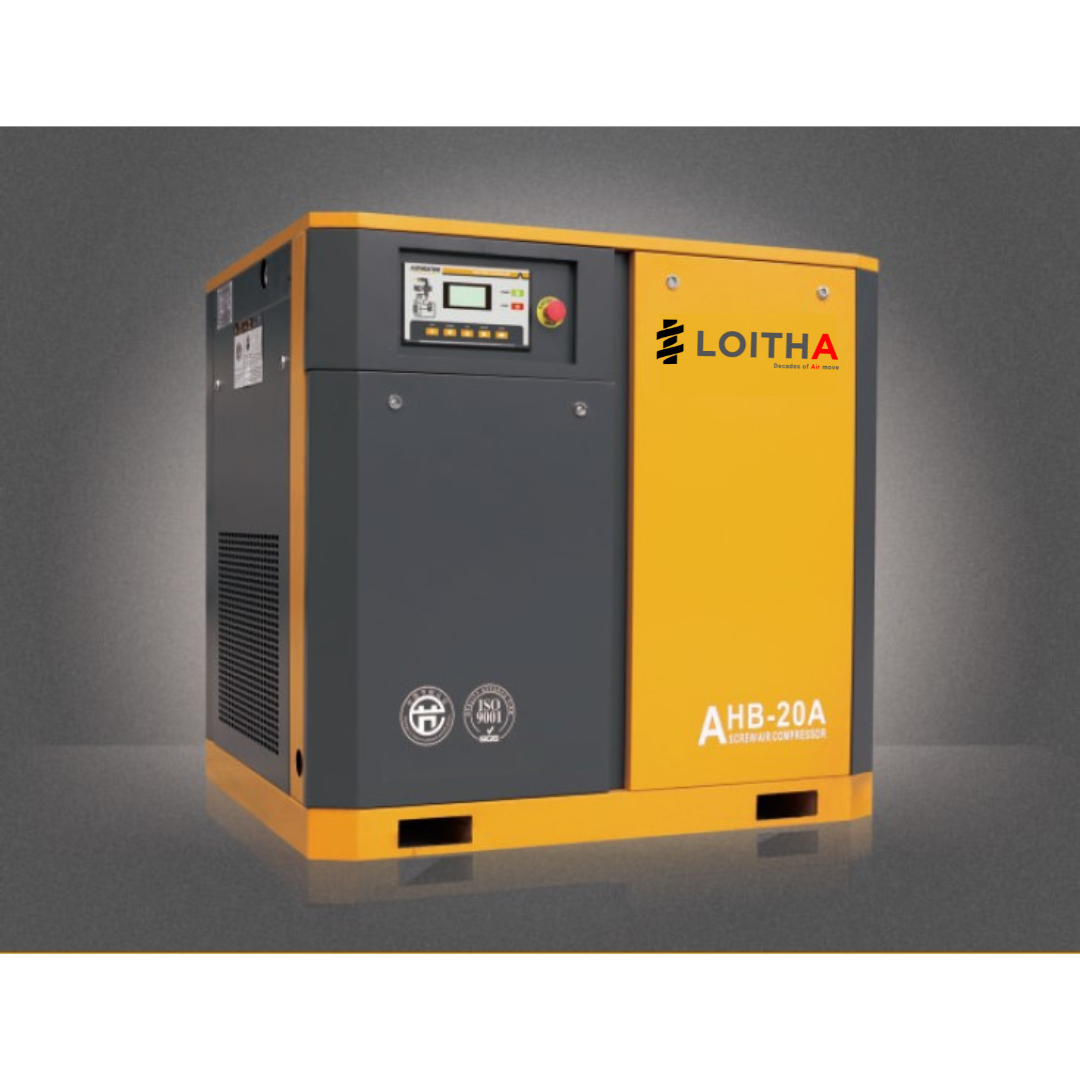

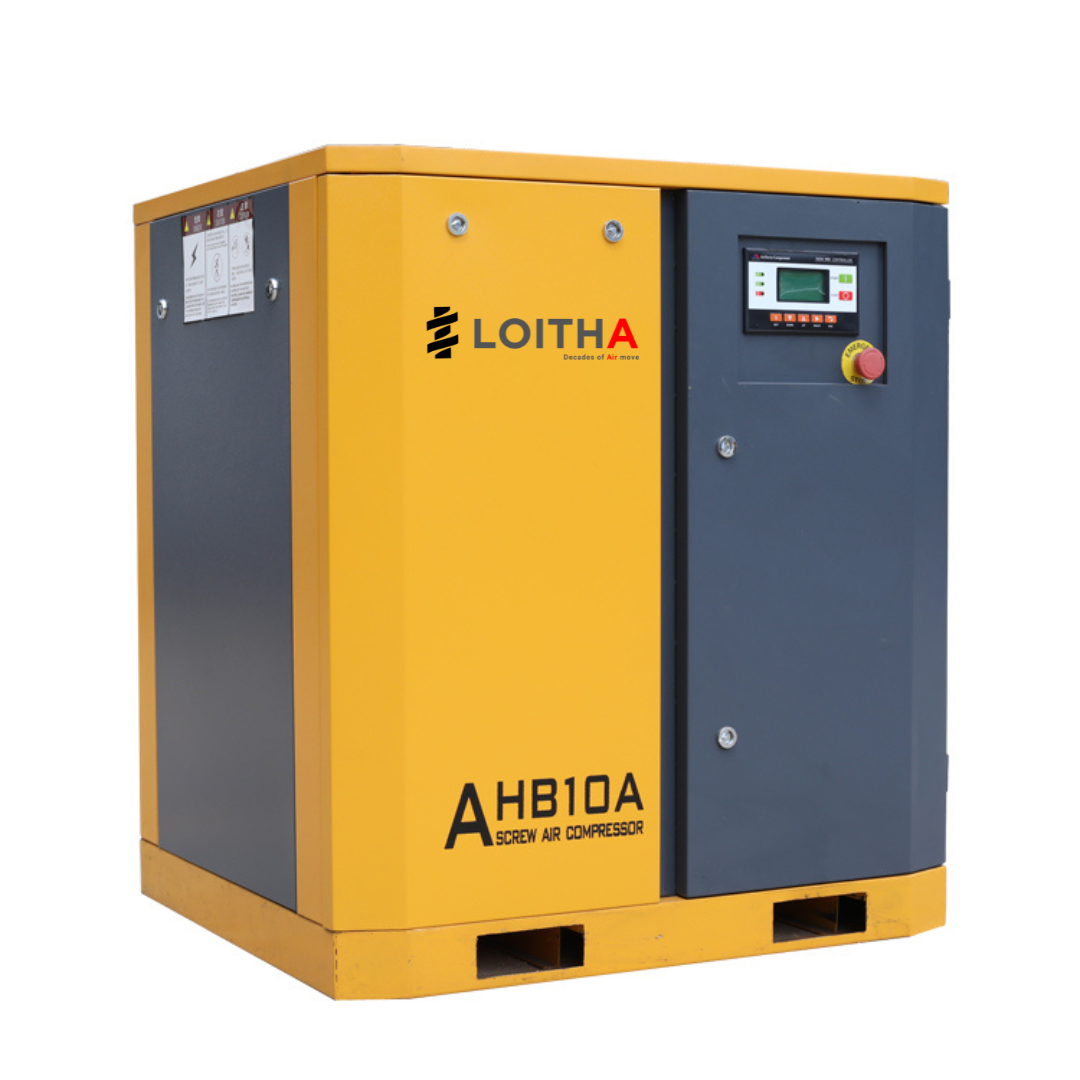

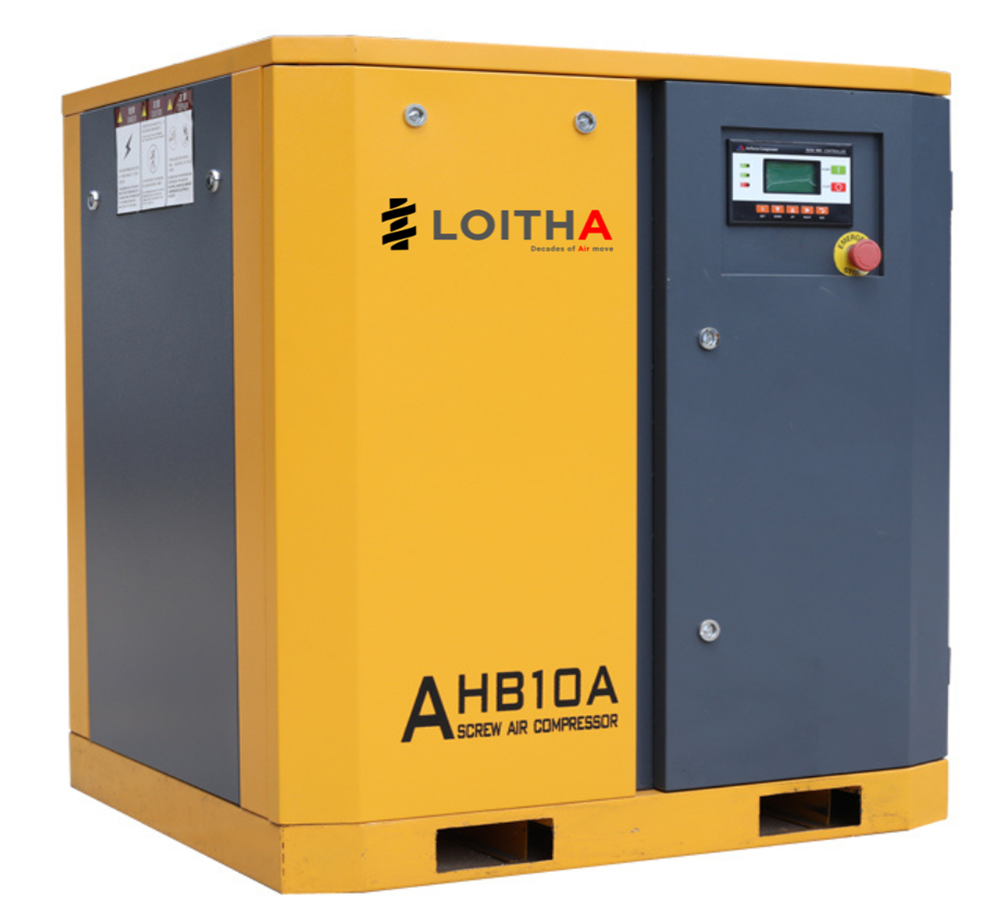

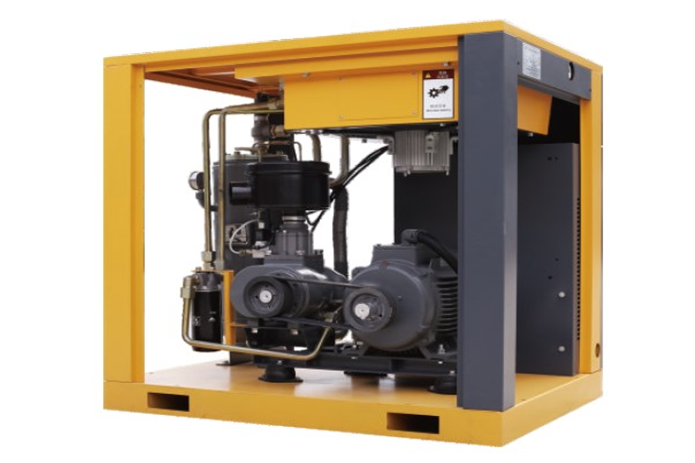

Belt Driven Screw Air Compressor

Name: Two Stage Screw Air Compressor
Brand: Loitha
SKU: TSAC-2000
Price: 200000 INR
Availability: InStock
Rating: 4.8 (36 reviews)

Loitha Belt Driven Screw Air Compressor – Industrial Model

High-Efficiency Belt Driven Screw Compressor India

Industrial Belt Type Screw Air Compressor for Manufacturing

Energy-Saving Belt Driven Screw Air Compressor

Loitha Belt Driven Rotary Screw Compressor with Advanced FeaturesF

At Loitha, we manufacture high-performance Belt Driven Screw Air Compressors designed for industries that demand efficiency, reliability, and cost-effective operations. As a trusted name among rotary compressor manufacturers, our solutions combine robust engineering with innovative technology, ensuring continuous airflow for diverse applications while keeping energy consumption low.

Why Choose Loitha Belt Driven Screw Air Compressor?

Our direct drive system guarantees minimal energy loss, delivering the right compressor for industries where reliable air supply and energy efficiency are critical.

Advanced Energy Savings

Optimized belt drive system ensures maximum efficiency.

Minimal Long-Term Costs

Built with durable components to reduce maintenance and downtime.

Industry-Leading Warranty

Assured quality and reliable after-sales service.

Best-in-Class Dependability

Consistent performance even in demanding industrial environments.

Applications of Belt Driven Screw Air Compressor

Our compressors are widely trusted across industries, including:

Manufacturing – powering tools, machinery, and assembly lines.
Textile – supporting spinning, weaving, and finishing operations.
Ceramic – ensuring efficiency in molding and drying processes.
Food & Beverage – clean compressed air for packaging and processing.
Packaging – reliable air supply for sealing, labeling, and automation.
Automotive – precision air for painting, assembling, and workshops.

What Makes Us Unique?

Loitha stands apart with:

High-Quality Accessories for extended machine life.
Precision Engineering ensuring smooth operation.
Robust Design suited for heavy-duty industrial needs.
Customer-Centric Service with expert support and maintenance.

Air End (German Technology)

Famous brand air end with SKF bearing, Designed for greater air capacity, improved efficiency, and precision-engineered rotors to extend the lifespan of the moving parts.

High Efficient Inverter

Adopting frequency conversion speed to maximize energy savings, creating a new generation of energy-efficient compressors that reduce electricity consumption.

Multi language Control Panel

Loitha Control panel provide the most cost effective maintenance program, to ensure trouble-free operation, almost like a built-in service technician.

Motor

Using well well-known brand motor with IP54 protection, F-class insulation, and SKF bearings. It offers 3%-5% higher efficiency compared to similar products.

Colling System

Design of large heat exchange area, effectively preventing overheating and ensuring reliable performance in harsh conditions for extended service life.

Intake Valve

Automatically adjust based on gas consumption, low maintenance, good stability, large inlet air.

Technical Parameter

Model	Motor Power		Working Pressure		Free Air Flow		Outer Diameter	Noise level	Weight	Dimensions
										L x W x H
50Hz	kW	Hp	Bar g	Psi g	M3^/min	cfm	DN	Db	kg	mm
AHB-5A	7.5	10	7	101	0.59	21	3/4″	72±2	136	920 X 600 X 690
			8	116	0.55	19
			10	145	0.43	15
			13	188	0.33	12
AHB-7A	11	15	7	101	0.85	30	1/2″	72±2	210	860 X 730 X 960
			8	116	0.75	26
			10	145	0.60	21
			13	188	0.46	16
AHB-10A	15	20	7	101	1.2	42	1/2″	72±2	220	860 X 730 X 960
			8	116	1.1	39
			10	145	0.9	32
			13	188	0.7	25
AHB-15A	22	30	7	101	1.6	57	3/4″	72±2	260	940 X 800 X 1075
			8	116	1.5	53
			10	145	1.3	46
			13	188	1.1	39
AHB-20A	30	40	7	101	2.5	88	3/4″	72±2	305	940 X 800 X 1075
			8	116	2.3	81
			10	145	2.1	74
			13	188	1.9	67
AHB-30A	37	50	7	101	3.8	134	1″	75±2	410	1200 X 950 X 1150
			8	116	3.6	127
			10	145	3.2	113
			13	188	2.8	99
AHB-40A	45	60	7	101	5.2	184	1″	75±2	560	1400 X 930 X 1280
			8	116	5.0	177
			10	145	4.5	159
			13	188	3.8	134
AHB-50A	55	75	7	101	6.8	240	1 1/2″	78±2	610	1500 X 990 X 1420
			8	116	6.2	219
			10	145	5.6	198
			13	188	4.9	173
AHB-60A	75	100	7	101	7.3	258	1 1/2″	78±2	680	1500 X 990 X 1420
			8	116	7.0	247
			10	145	6.0	212
			13	188	5.6	198
AHB-75A	90	120	7	101	10.0	353	2″	80±2	980	1730 X 1100 X 1610
			8	116	9.1	321
			10	145	8.5	300
			13	188	7.6	268
AHB-100A	110	150	7	101	13.5	477	2″	80±2	1000	1730 X 1100 X 1610
			8	116	12.6	445
			10	145	11.2	396
			13	188	10.0	353

Compression stage: single stage
Ambient temperature: -5–+45℃
Cooling model: Air –Cooling
Discharge temperature(℃): Ambient temperature+15℃
Drive method: Belt driven
Electricity(V/ph/Hz): 380/3/50
Starting method: Direct start in Model No: AHB-5A to AHB-10A & Star-delta starting in Model No: AHB-15A to AHB-100A

Additional Specifications:

Compression Stage: Single stage
Ambient Temperature: -5℃ to +45℃
Cooling Model: Air Cooling
Discharge Temperature: Ambient +15℃
Drive Method: Belt driven
Electricity: 415V / 3 phase / 50Hz
Starting Method:
- Direct start (AHB-5A to AHB-10A)
- Star-delta starting (AHB-15A to AHB-100A)
