Loitha Direct Drive Screw Air Compressor

Name: Two Stage Screw Air Compressor
Brand: Loitha
SKU: TSAC-2000
Price: 200000 INR
Availability: InStock
Rating: 4.8 (36 reviews)

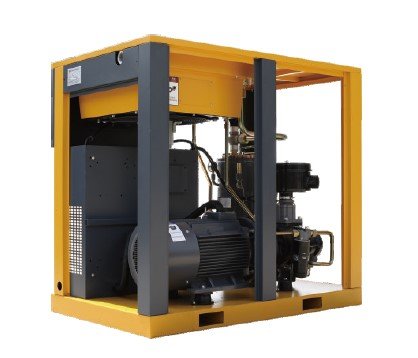

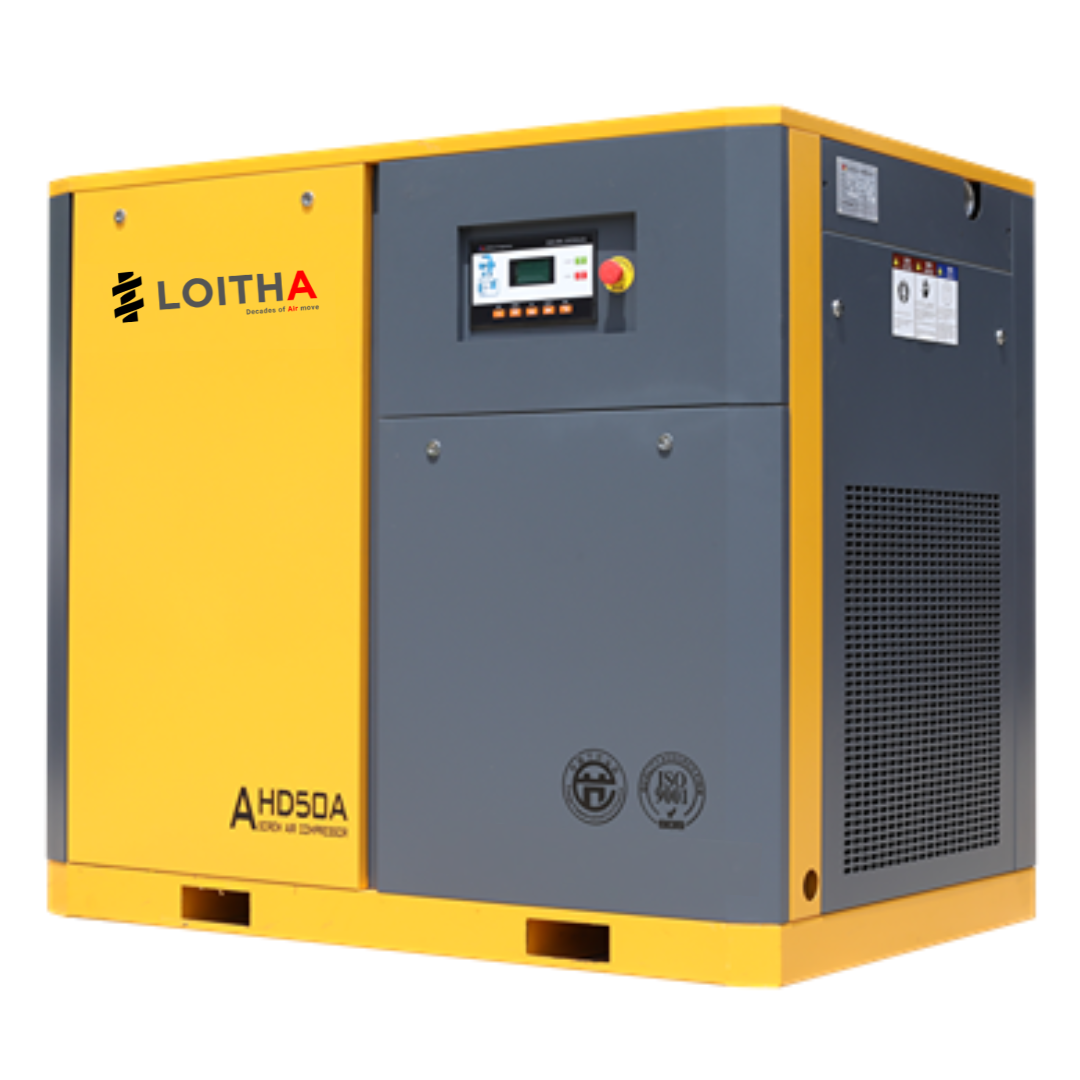

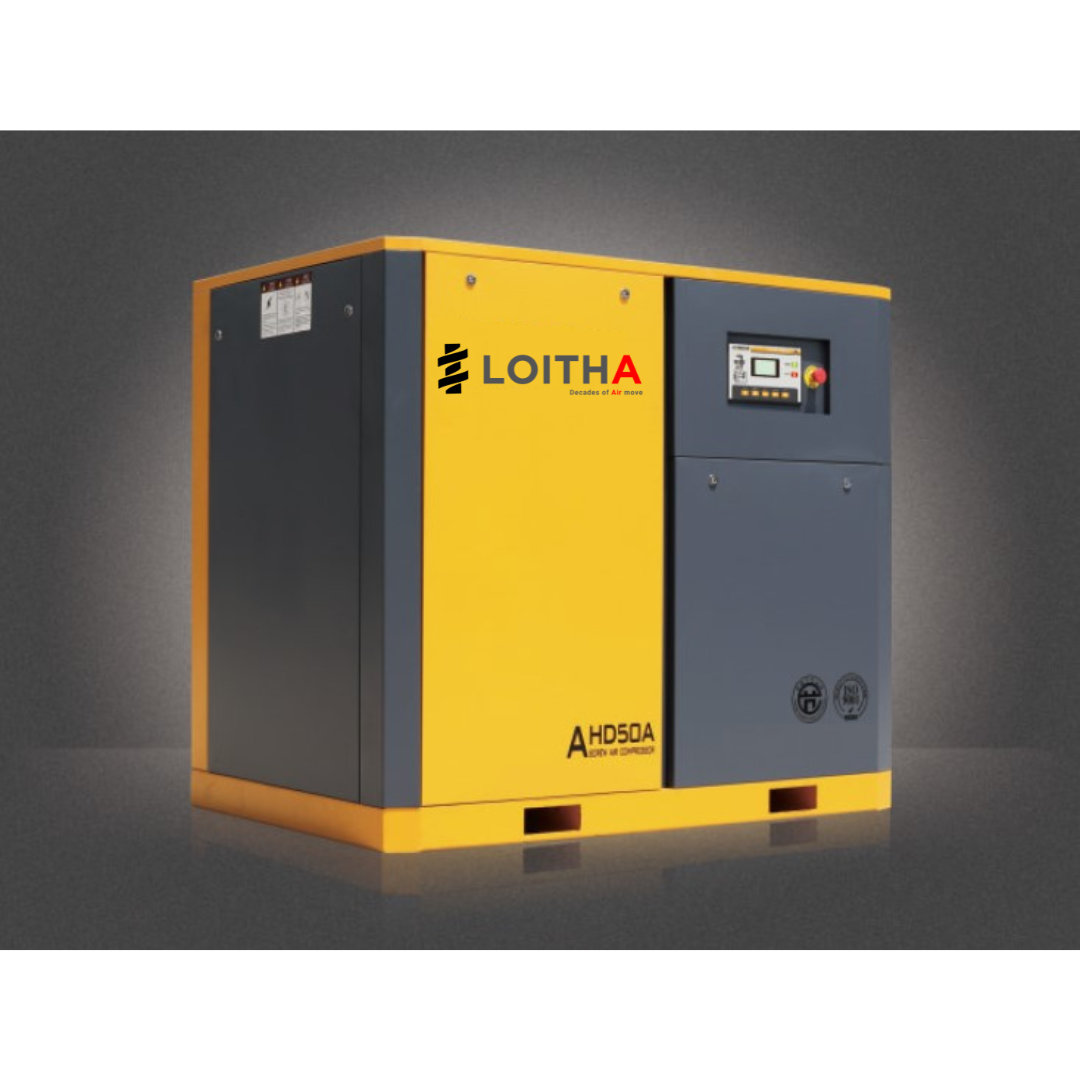

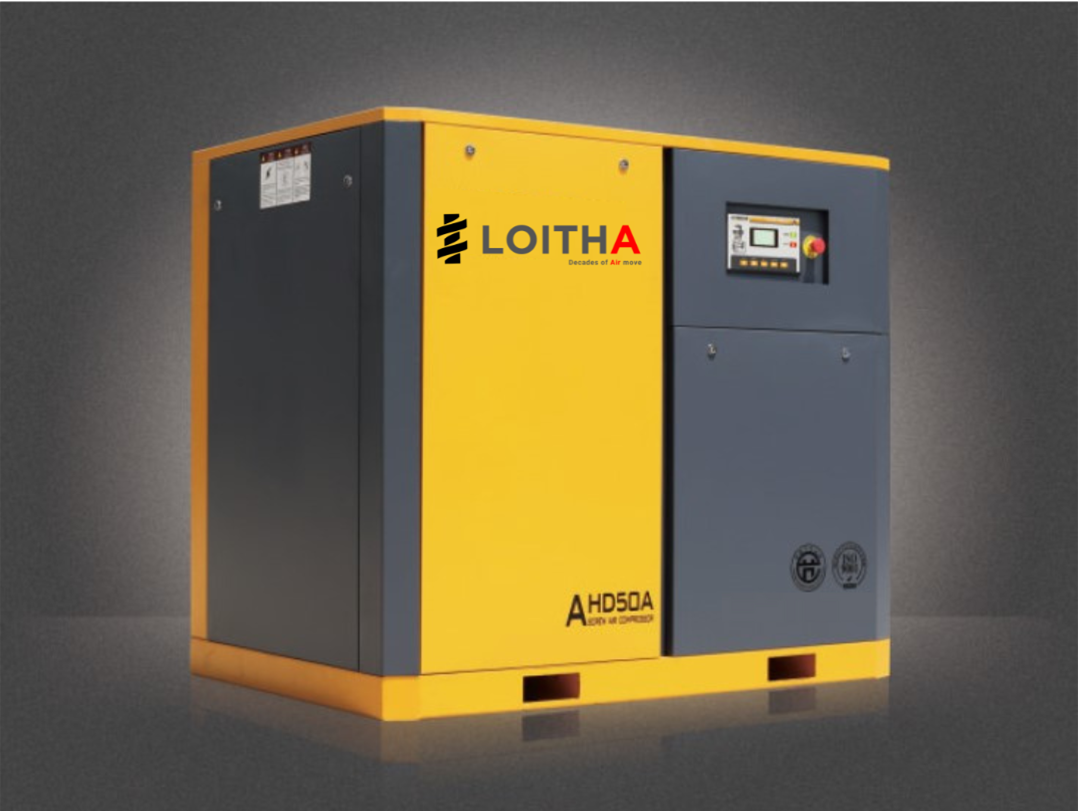

Loitha direct drive screw air compressor industrial model

Direct driven single stage screw air compressor for textile industry

High efficiency direct drive air compressor with compact design

Industrial rotary screw air compressor ensuring energy savings

Loitha’s direct drive screw air compressor is a high-performance solution engineered for demanding industrial operations. With advanced direct drive technology, our compressors provide reliable compressed air with low maintenance, high efficiency, and reduced power consumption. Designed to ensure superior air quality, these direct drive compressors minimize transmission losses, extend service life, and deliver consistent compressed air output for various industrial applications.

Why Choose Loitha Direct Drive Screw Compressor?

Our direct drive system guarantees minimal energy loss, delivering the right compressor for industries where reliable air supply and energy efficiency are critical.

Advanced Energy Savings

Fewer moving parts ensure reduced wear and tear.

Premium Efficiency Screw Air Compressor

Designed for continuous duty and long service life.

Low Maintenance Requirements

Directly connected crankshaft reduces alignment issues.

High-Efficiency Air Compression

Ensures clean, cost-effective compressed air solutions.

Compact Design

Saves space and ensures easy installation.

Applications of Direct Drive screw Air Compressors

Loitha’s direct driven screw air compressors are used in:

Manufacturing Applications – Stable air supply for production lines.
Textile Applications – Clean, consistent compressed air for spinning and weaving.
Ceramic Applications – Reliable rotary screw air compressor performance for kilns and machinery.
Food & Beverage – Oil-free compressed air for hygienic processing and packaging.
Automotive Applications – Dependable compressed air systems for assembly and painting.
Packaging Applications – Continuous duty compressors to meet high air demand.

Our range also includes hp tank mounted direct driven screw compressors, hp high pressure air booster compressors, and 2-stage screw air compressors for specialized needs.

Whats makes us Unique?

HIGH QUALITY ASSESSORIES

Air End (German Technology)

Famous brand air end with SKF bearing, Designed for greater air capacity, improved efficiency, and precision-engineered rotors to extend the lifespan of the moving parts.

High Efficient Inverter

Adopting frequency conversion speed to maximize energy savings, creating a new generation of energy-efficient compressors that reduce electricity consumption.

Multi language Control Panel

Loitha Control panel provide the most cost effective maintenance program, to ensure trouble-free operation, almost like a built-in service technician.

Motor

Using well well-known brand motor with IP54 protection, F-class insulation, and SKF bearings. It offers 3%-5% higher efficiency compared to similar products.

Colling System

Design of large heat exchange area, effectively preventing overheating and ensuring reliable performance in harsh conditions for extended service life.

Intake Valve

Automatically adjust based on gas consumption, low maintenance, good stability, large inlet air.

Technical Parameters – Direct Drive Screw Air Compressor

Model	Motor Power		Working Pressure		Free Air Flow		Outer Diameter	Noise level	Weight	Dimensions
										L x W x H
50Hz	kW	Hp	Bar g	Psi g	M3^/min	cfm	DN	Db	kg	mm
AHD-10A	7.5	10	7	101	1.2	42	1/2″	70±2	200	950 X 650 X 880
			8	116	1.1	39
			10	145	0.9	32
			13	188	0.7	25
AHD-15A	11	15	7	101	1.6	57	3/4″	70±2	210	1160 X 700 X 1100
			8	116	1.5	53
			10	145	1.3	46
			13	188	1.1	39
AHD-20A	15	20	7	101	2.5	88	3/4″	70±2	230	1160 X 700 X 1100
			8	116	2.3	81
			10	145	2.1	74
			13	188	1.9	67
AHD-30A	22	30	7	101	3.8	134	1″	70±2	415	1200 X 900 X 1150
			8	116	3.6	127
			10	145	3.2	113
			13	188	2.8	99
AHD-40A	30	40	7	101	5.2	184	1″	70±2	460	1400 X 900 X 1125
			8	116	5.0	177
			10	145	4.5	159
			13	188	3.8	134
AHD-50A	37	50	7	101	6.8	240	1 1/2″	78±2	625	1560 X 1000 X 1365
			8	116	6.2	219
			10	145	5.6	198
			13	188	4.9	173
AHD-60A	45	60	7	101	7.3	258	1 1/2″	78±2	695	1560 X 1000 X 1365
			8	116	7.0	247
			10	145	6.0	212
			13	188	5.6	198
AHD-75A	55	75	7	101	10.0	353	2″	80±2	980	1730 X 1100 X 1610
			8	116	9.1	321
			10	145	8.5	300
			13	188	7.6	268
AHD-100A	75	100	7	101	13.5	477	2″	80±2	1000	1730 X 1100 X 1610
			8	116	12.6	445
			10	145	11.2	396
			13	188	10.0	353
AHD-120A	90	120	7	101	16.1	569	2″	80±2	1700	2100 X 1430 X 1740
			8	116	15.0	530
			10	145	13.8	487
			13	188	12.3	434
AHD-150A	110	150	7	101	21.0	742	2 1/2″	80±2	2150	2500 X 1450 X 1800
			8	116	19.8	699
			10	145	17.0	600
			13	188	15.3	540
AHD-175A	132	175	7	101	25.2	890	2 1/2″	80±2	2750	2700 X 1580 X 1800
			8	116	24.0	848
			10	145	21.0	742
			13	188	18.3	646
AHD-220A	160	220	7	101	28.7	1014	2 1/2″	80±2	3150	2700 X 1580 X 1800
			8	116	27.6	975
			10	145	24.6	869
			13	188	21.5	759
AHD-250A	185	250	7	101	32.0	1130	3″	80±2	3450	2800 X 1830 X 1950
			8	116	30.5	1077
			10	145	27.5	971
			13	188	24.8	876
AHD-300A	220	300	7	101	36.7	1296	3″	80±2	3850	2800 X 1830 X 1950
			8	116	34.5	1218
			10	145	30.2	1067
			13	188	27.8	982
AHD-350A	250	350	7	101	42.0	1483	3″	80±2	4850	3250 X 2130 X 2300
			8	116	40.5	1430
			10	145	38.1	1345
			13	188	34.6	1222

Compression stage: single stage
Ambient temperature: -5–+45℃
Cooling model: Air –Cooling
Discharge temperature(℃): Ambient temperature+15℃
Drive method: Direct coupled
Electricity(V/ph/Hz): 380/3/50
Starting method: Star-delta starting

We offer models ranging from 10 HP direct drive air screw compressors to 300 HP industrial rotary screw air compressors.

Each Loitha direct drive compressor ensures:

Minimized energy consumption with reduced transmission losses.
High-pressure compressed air solutions up to 13 Bar.
Super premium efficiency screw air compression technology for industrial reliability.

Direct Drive vs Belt Drive Compressors

Choosing a direct drive screw air compressor ensures continuous duty performance, energy savings, and longer service life—making it the ideal choice for industries with high and variable compressed air needs.

Loitha’s Complete Compressed Air Solutions

Alongside our direct driven air compressor range, Loitha also manufactures:

Each compressor is engineered with super premium efficiency, ensuring reliable compressed air at the lowest possible operating cost.
